Masonry wall ties

Wall ties to timber/door frame, steel frame & concrete columns to secure brick or light weight block walls。 Wall ties are used in cavity walls to hold the two walls together, without wall ties the two walls can bulge or bow.；Brick Tie and Frame Tie acts as reinforcement for brick and block walls when embedded in cement mortar at every fourth course。Brick tie and Frame tie are corrosion resistance manufactured using high quality galvanized steel.
Masonry frame/brick tie acts as connection and permit in plane movement to accommodate differential movements in built-up brick/block wall.
Material: galvanized iron wire, stainless steel wire，high quality galvanized steel.，stainless steel
We can produce all types of wall ties according to your samples or drawings.
（1）Traditional butterfly wall Wire  tie
Product Description
Place across cavity and tie two skins by embedding in mortar. Includes twist to allow moisture to drip off
　

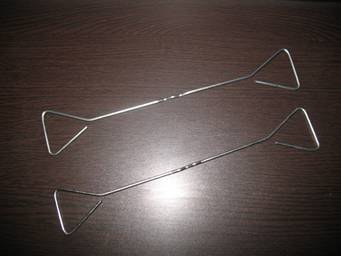

2) Double Triangle Tie

Product Description
Place across cavity and tie two skins by embedding in mortar. Includes drip to allow moisture to run off. Use with a retaining disc to support and hold in place cavity insulation

　

（3）Bricktor (Brickweld)，
Also called mesh wall Wire tie,it is ideal for bonding and strengthening brickwork, blockwork and stone walls. Bricktor is manufactured from high tensile wire welded into a rectangular format.  Available in stainless steel and galvanised finishes, Bricktor lies flat on the masonry mortar joint, making the product easy to install compared to other coiled products. To control cracking in masonry.  It can be used for both standard masonry joints and 2-3mm thin joint systems.
GAUGES:1/4" square X 23 ga;1/2" square X 16 ga.
DIMENSIONS:WIDTH: 4" WIDE FOR 6" WALL, 6" WIDE FOR 8" WALL, 8" WIDE FOR 10" WALL, 10" WIDE FOR 12" WALL, OTHER LENGTH: 8", 12", 100 FT. ROLL, and OTHER


(4)Flexible Wire Anchor
Permits horizontal and vertical movement of the masonry wall while restraining the wall from moving laterally out of plane.
AVAILABLE FINISHES:Mill Galv./Hot Dip Galv./Stainless Steel
　
Adjustable Wall Veneer Anchor
GAUGES:14 ga. or 12 ga. thick
AVAILABLE FINISHES:Hot-dipped galvanized or Type 304 stainless steel; Type 316 optional
